Commercial/Industrial
Versatile. Reliable. Pure.
For labs processing larger volumes of botanicals — a single system that enables fast, efficient and reliable extraction of herbs, cold and warm/wash ethanol extraction, spirits distillation, steam distillation and solvent recovery.
The use of ethanol as a solvent can be a cost-effective method of producing quality extracts from large volumes of biomass. Our Ethanol Extraction Platform is capable of cold and warm wash methods of extraction, steam distillation, solvent recovery and spirits distilling. 1
With best-in-class performance single module, you can process 120-160 lbs of material per hour. 2
Talk to Us Quick Sales Inquiry
Coldfinger™ X “Goldilocks” – the perfect size for R&D and small-batch extraction. Comes in a cryo format with an attached Falling Film – 40-50 lbs per day.
Industrial Ethanol Platform
Ethanol as a solvent is a cost-effective method of producing quality extracts from large volumes of biomass. Our industrial-scale, cryo-capable Ethanol Extraction Platform can process 80 lbs. per hour. The unit is fully integrated with our 500-gallon solvent recovery system.
Features & Benefits
- System is skidded for quick setup and installation
- Quick connect / disconnect fittings for ease of operation
- Turnkey system with all utilities
- No winterization necessary
- In-line filtration
- Recovers up to 100 gallons of ethanol per hour
- Extraction run times as low as 30 minutes depending on SOP
- Full power requirements available upon request
Eden Labs Industrial Scale Ethanol Extraction
GMP Compliant Systems
All Eden Labs products and processes are designed in accordance with the Good Manufacturing Practice standards of the US Food and Drug Administration. These regulations require that manufacturers, processors, and packagers of drugs, medical devices, some food, and blood take proactive steps to ensure that their products are safe, pure, and effective.
We’ve been extracting with our Eden system for years—the solution is fast, efficient, and easy to use. Performance is great. So are yields.
We are so glad we ended up choosing Eden Labs’ CO2 Hi-Flo. Their quality and craftsmanship are unmatched. They are by far the leaders in the industry. The entire staff at Eden Labs is extremely knowledgeable and always available to help. We would highly recommend Eden Labs to anyone looking for extraction equipment.
Watch
The Versatility of the Eden Labs Ethanol Extractor
Small scale commercial warm ethanol extraction
With over 20 years of botanical and whole plant extraction expertise, the Eden Labs Ethanol Extraction Platform gives the user full control over process variables, reduces processing time and extracts a full spectrum of yields efficiently.
Cold Wash Ethanol Extraction
The Ethanol Extractor is capable of Cold Wash Ethanol Extraction – a method of extraction that preserves volatile plant compounds to produce a great tasting whole plant extract.
Industry-leading throughput
- Process 65-80 lbs. of biomass per hour with a cold, fast rinse standard operating practice.
- Available in two models: Professional (25-gal) and High Performance (100-gal). A 500-gallon option is available for solvent recovery. 3
Safe operating environment
- Our extraction system has a closed-loop design and built with 316 stainless steel.
- System is 3rd party engineer reviewed with UL-listed C1D2 electronics and Type 6 process for licensed operations.
Versatile, easy-to-use solution
- Besides ethanol extraction, the platform is configurable for steam distillation and solvent recovery.
- System supports cold and warm extraction methods, along with advanced shatter-grade and Coldfinger extractions.
| Model 5 | Professional Extraction (25-gal) | High Performance Extraction (100-gal) |
|---|---|---|
| Biomass capacity (lbs.) 6 | 15 to 18 | 65 to 80 |
| Ethanol requirement per run (gal.) | 7 to 17.5 | 30 to 75 |
| Setup (min.) | 15 to 30 | 15 to 30 |
| Run time (min) 7 | 30 to 90 | 30 to 90 |
| Cleanup (min.) | 15 | 15 |
| Processing per 8-hour shift (max.) | 110 | 590 |
| Extraction Efficiency (%) | 90 to 99 | 90 to 99 |
| Terpene Capture Efficiency (%) | 95 to 100 | 95 to 100 |
| Ethanol Recovery Efficiency (gal. per hour) | 4 | 20 |
Recovery efficiency for the 500-gal Industrial Performance Solvent Recovery System is up to 100-gal per hour.
100-gal Ethanol Extraction System
| Quantity | Dimensions (L x W x H) | Volts | AMPs | Phase | Hertz | |
|---|---|---|---|---|---|---|

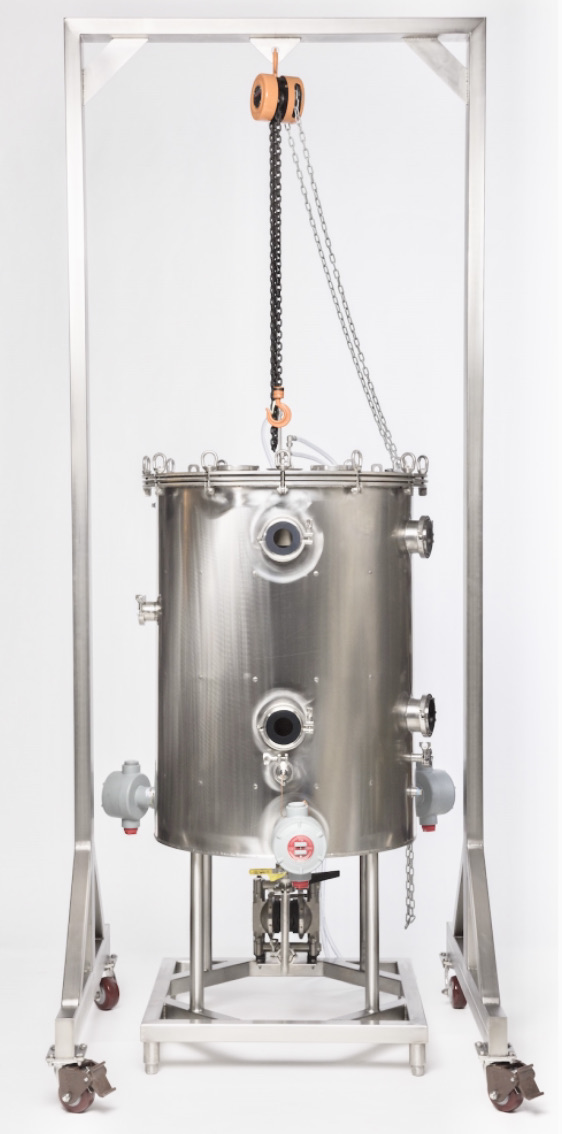

| 100 Gal Extraction Vessel with Hoist | 1 | 57” x 67” x 107” | n/a | n/a | n/a | n/a |
| 100 Gallon Pre-Chill Tank | 1 | 34” x 34” x 63” | n/a | n/a | n/a | n/a |
| Carbon Filtration System | 1 | 21” x 19” x 52” | n/a | n/a | n/a | n/a |
| Ultra Low Temp Chiller 9 | 1 | 35” x 33” x 56” | 220 | 26 | 3 | 50 or 60 |
100-gal Solvent Recovery Systems
| Quantity | Dimensions (L x W x H) | Volts | AMPs | Phase | Hertz | |
|---|---|---|---|---|---|---|
| 100 Gallon Vessel | 1 | 57” x 67” x 107” | n/a | n/a | n/a | n/a |
| 100 Gallon Recovery Vessel | 1 | 34” x 34” x 63” | n/a | n/a | n/a | n/a |
| 4500W explosion-proof heater 8 | 3 | Mounted on unit | 240/480 | 30/10 | 3 | 50 or 60 |
| Vacuum pump | 1 | Mounted on unit | 120 | 4.2 | 1 | 60 |
| Medium Temp Chiller 9 | 1 | 58” x 32” x 46” | 220-240 | 28 | 3 | 50 or 60 |
| 10 Hp screw Compressor | 1 | 56” x 25” x 58” | 220-240 | 30 | 3 | 50 or 60 |
500-gal Solvent Recovery Systems
| Quantity | Dimensions (L x W x H) | Volts | AMPs | Phase | Hertz | |
|---|---|---|---|---|---|---|
| 500 Gallon Vessel | 1 | 58” x 96” x 106” | n/a | n/a | n/a | n/a |
| 100 Gallon Pre-Chill Tank | 1 | 34” x 34” x 63” | n/a | n/a | n/a | n/a |
| Dual 100 Gal Recovery Vessel SKid | 1 | 71” x 34” x 71” | n/a | n/a | n/a | n/a |
| 40,000W explosion-proof heater 8 | 2 | Mounted on unit | 480 | 49 (x2) | 3 | 50 or 60 |
| Vacuum pump | 1 | Mounted on unit | 120 | 4.2 | 1 | 60 |
| Medium Temp Chiller 9 | 1 | 120” x 50 x 92” | 480 | 76 | 3 | 50 or 60 |
| 15 Hp screw Compressor | 1 | 76” x 25” x 58” | 480 | 20 | 3 | 50 or 60 |
| Ultra Low Temp Chiller 9 | 1 | 35” x 33” x 56” | 220 | 26 | 3 | 50 or 60 |
All electrical components are UL listed for the US and Canada.
Download Product Sheet1 Large operators use this system for research and development.
2 With single module – double basket configuration. Yields may vary with type of extraction method used.
3 Floor area coverage includes chiller, compressor, and heat baths.
5 Actual times will vary in accordance with standard operating practices.
6 Actual capacity depends on grind size and density of biomass.
7 Run time is dependent on cold or warm wash extraction.
8 High Performance model (100-gal) has 3 heaters and Industrial Performance Solvent Recovery upgrade (500-gal) has 2 heaters.
9 Chiller for cold wash extraction application rated to -40 º C.
